Getting Started with Stream Processing

Spring Cloud Data Flow provides over 70 prebuilt streaming applications that you can use right away to implement common streaming use cases. In this guide, we use two of these applications to construct a simple data pipeline that produces data sent from an external HTTP request and consumes that data by logging the payload to the terminal.

Instructions for registering these prebuilt applications with Data Flow are provided in the Installation guide.

Stream DSL overview

You can create streams by using a Domain Specific Language (DSL) through the shell or the dashboard as well as programmatically in Java. The dashboard also lets you drag and drop applications onto a palate and connect them visually. The dashboard is bi-directional, so visual actions update the DSL and edits to the DSL update the view of the stream.

The DSL is modeled after the Unix pipes and filter syntax. As an example, a stream DSL defined as http | log represents an http application sending the data it received from a HTTP post to the messaging middleware.
The log application receives the message with that data from the messaging middleware and logs it to the terminal. Each name in the DSL is associated with an application through the application registration process. The applications are connected through a | symbol that represents the messaging middleware that acts as the 'pipe' between the applications.

Following diagram illustrates the Stream processing life cycle:

Creating the Stream

To create a stream:

1. In the menu, click Streams.

2. Click the Create Stream(s) button.

   The screen changes to the following image:



3. In the text area, type http | log.
4. Click Create Stream.

5. Enter http-ingest for the stream name, as shown in the following image:



6. Click the Create the stream button.

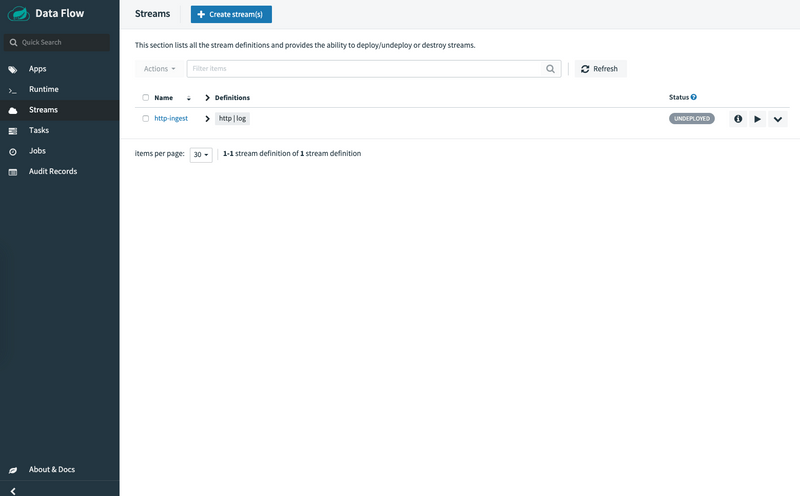

   The Definitions page appears.



Deploying a Stream

Now that you have defined a stream, you can deploy it. To do so:

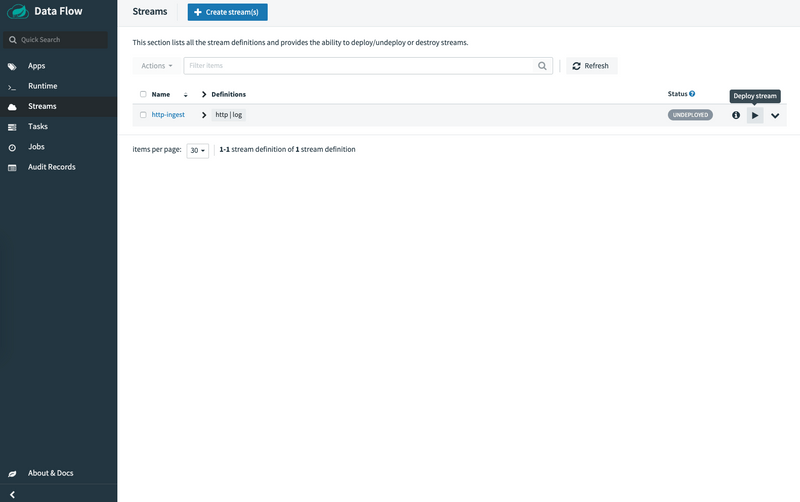

1. Click the play (deploy) button next to the "http-ingest" definition that you created in the previous section.

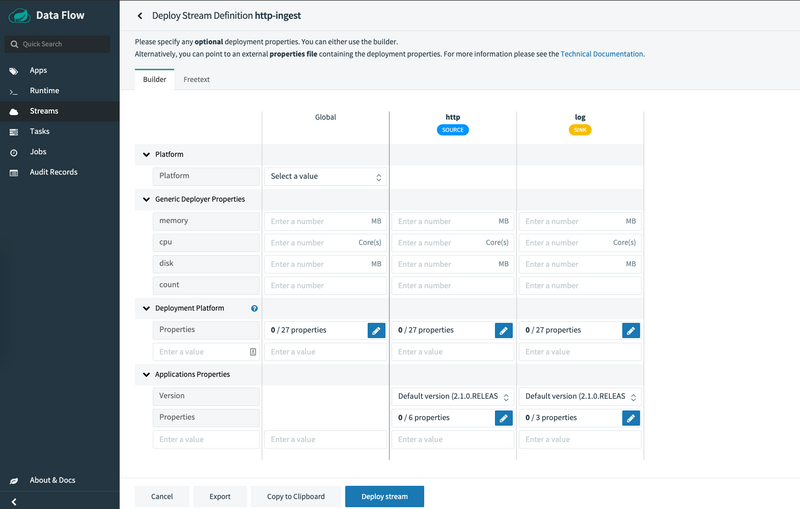

   The UI shows the available properties that can be applied to the apps in the "http-ingest" stream. This example shown in the following image uses the defaults:



2. Click the Deploy Stream button.

   The UI returns to the Definitions page.

   The stream is now in "deploying" status, and its status becomes "deployed" when it has finished deploying. You may need to refresh your browser to see the updated status.

Verifying Output

Once your application is deployed, you can verify its output. How to do so depends on where you run your application:

• Local
• Cloud Foundry
• Kubernetes

Local

This section details how to verify output when your application runs on a local server.

Test Data

Once the stream is deployed and running, you can now post some data. You can use the following curl command to do so:

curl http://localhost:20100 -H "Content-type: text/plain" -d "Happy streaming"

Results

Once a stream is deployed, you can view its logs. To do so:

1. Click Runtime in the menu.
2. Click "http-ingest.log".
3. Copy the path in the "stdout" text box on the dashboard

4. In another console window, type the following, replacing /path/from/stdout/textbox/in/dashboard with the value you copied in the previous step:

   Copy

   $ docker exec -it skipper tail -f /path/from/stdout/textbox/in/dashboard

   The output of the log sink appears in the new window. You will see output as shown below. When you have seen enough output from sending http requests, press Ctrl+C to end the tail command.

log-sink                                 : Happy streaming

Cloud Foundry

This section details how to verify output when your application runs on Cloud Foundry.

Test Data

Once the stream is deployed and running in Cloud Foundry, you can now post some data. You can use the following curl command to do so:

curl http://http-ingest-314-log-v1.cfapps.io -H "Content-type: text/plain" -d "Happy streaming"

Results

Now you can list the running applications again and see your applications in the list, as the following example shows:

$ cf apps                                                                                                                                                                                                                                         [1h] ✭
Getting apps in org ORG / space SPACE as [email protected]...

name                         requested state   instances   memory   disk   urls
http-ingest-314-log-v1       started           1/1         1G       1G     http-ingest-314-log-v1.cfapps.io
http-ingest-314-http-v1      started           1/1         1G       1G     http-ingest-314-http-v1.cfapps.io
skipper-server               started           1/1         1G       1G     skipper-server.cfapps.io
dataflow-server              started           1/1         1G       1G     dataflow-server.cfapps.io

Now you can verify the logs, as the following example shows:

cf logs http-ingest-314-log-v1
...
...
2017-11-20T15:39:43.76-0800 [APP/PROC/WEB/0] OUT 2017-11-20 23:39:43.761  INFO 12 --- [ http-ingest-314.ingest-314-1] log-sink                                 : Happy streaming

Kubernetes

This section details how to verify output when your application runs on Kubernetes.

Get the HTTP service URL by running one of the following commands:

export SERVICE_URL="$(kubectl get svc --namespace default http-ingest-http-v1 -o jsonpath='{.status.loadBalancer.ingress[0].ip}'):8080"

export SERVICE_URL=$(minikube service --url test-http-v1)

You can view the HTTP URL of the application by typing the following:

echo $SERVICE_URL

Test Data

Once the stream is deployed and running in Kubernetes, you can now post some data. You can use the following curl command to do so:

curl $SERVICE_URL -H "Content-type: text/plain" -d "Happy streaming"

Results

kubectl get pods
NAME                              READY     STATUS    RESTARTS   AGE
http-ingest-log-v1-0-2k4r8          1/1       Running   0          2m
http-ingest-http-v1-qhdqq           1/1       Running   0          2m
mysql-777890292-z0dsw               1/1       Running   0          49m
rabbitmq-317767540-2qzrr            1/1       Running   0          49m
scdf-server-2734071167-bjd3g        1/1       Running   0          12m
skipper-2408247821-50z31            1/1       Running   0          15m

Now you can verify the logs.

kubectl logs -f http-ingest-log-v1-0-2k4r8
...
...
2017-10-30 22:59:04.966  INFO 1 --- [ http-ingest.http.http-ingest-1] log-sink                                 : Happy streaming

Deleting a Stream

Now you can delete the stream you created. To do so:

1. Click Streams in the menu.
2. Click the down chevron on the "http-ingest" row.
3. Click Destroy Stream.
4. When prompted for confirmation, click Destroy Stream Definition(s).

Updating and Rolling back a Stream

You can find this information in the Continuous Delivery guide.

Monitoring

You can find this information in the Stream Monitoring guide.
