Create and Deploy a Python Task

This recipe shows how to run a custom Python script as a Data Flow Task and how to later orchestrate the tasks as Composed Tasks.

The approach requires the Python script to be bundled in a docker image, which can then be used in SCDF's Local and Kubernetes implementations.

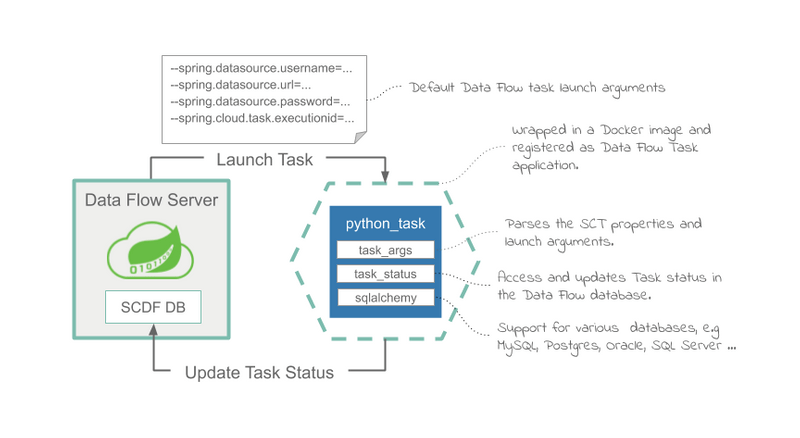

The following diagram walks through the architecture and the various components involved in the solution:

When Data Flow launches the Python script as a task, the script runs and completes with either a success or a failure status. Because this is not a standard Spring Cloud Task application, it is the user's responsibility to manage the life cycle and update the state to the shared database that is also used by Data Flow. Utilities are provided to help handle the launch arguments and manage the task status within the Data Flow database.

You can find the source code in the samples GitHub repository or download it as a zipped archive: polyglot-python-task.zip. Follow the Build instructions for building and using the project.

Development

The python_task.py script in the next example shows a sample Python script that you can register as a Spring Cloud Task. When launched, the Python script prints an acknowledgment message. It then sleeps for 60 seconds and completes afterward. If the --error.message=<Text> launch argument is present, the script throws an exception to simulate an execution failure.

from util.task_status import TaskStatus
from util.task_args import get_task_id, get_db_url, get_task_name, get_cmd_arg

try:
    # Connect to SCDF's database.
    status = TaskStatus(get_task_id(), get_db_url())

    # Set task's status to RUNNING.
    status.running()

    # Do something.
    print('Start task:{}, id:{}'.format(get_task_name(), get_task_id()))

    print('Wait for 60 seconds ...')
    sys.stdout.flush()
    time.sleep(60)

    if get_cmd_arg('error.message') is not None:
        raise Exception(get_cmd_arg('error.message'))

    # Set task's status to COMPLETED.
    status.completed()

except Exception as exp:
    # Set task's status to FAILED.
    status.failed(1, 'Task failed: {}'.format(exp))

To parse the input arguments and to manage its state in Data Flow, the custom script uses the following utilities:

• The task_status.py helps to access and update the Data Flow TASK_EXECUTION table in order to reflect task's life cycle events. The TaskStatus class takes task id and sqlalchemy url arguments (computed from the command line arguments) and provides API for setting the task status to running, completed, or failed(with exitCode, errorMessage). To access the Data Flow database, the task_status uses the following launch arguments, automatically provided by Data Flow on every task launch:

  Copy

  --spring.datasource.username=root
  --spring.datasource.password=yourpassword
  --spring.datasource.url=jdbc:mysql://<mysql-host>:<port>/mysq
  --spring.cloud.task.executionid=26

  The spring.cloud.task.executionid property represents the Task ID, as known inside Data Flow and persisted in the TASK_EXECUTION table.

• The task_args.py utility helps extract the task arguments for the default (that is, exec) entry point style. The utility also constructs sqlalchemy URLs for the different databases, which might be configured with SCDF (currently only MySQL is tested). Check the getdburl() implementation.

For python_task.py to act as a Data Flow task, it needs to be bundled in a Docker image and uploaded to DockerHub. The following Dockerfile illustrates how to bundle a Python script into docker image:

FROM python:3.7.3-slim

RUN apt-get update
RUN apt-get install build-essential -y
RUN apt-get install default-libmysqlclient-dev -y
RUN pip install mysqlclient
RUN pip install sqlalchemy

ADD python_task.py /
ADD util/* /util/

ENTRYPOINT ["python","/python_task.py"]
CMD []

It installs the required dependencies and adds the task script(s) (for example, ADD python_task.py) and utilities (under the util folder).

Build

1. Checkout the sample project and navigate to the polyglot-python-task folder:

git clone https://github.com/spring-cloud/spring-cloud-dataflow-samples
cd ./spring-cloud-dataflow-samples/dataflow-website/recipes/polyglot/polyglot-python-task/

1. Build the Docker image and push it to DockerHub:

docker build -t springcloud/python-task-with-status:0.1 .
docker push springcloud/python-task-with-status:0.1

Tip: replace springcloud with your docker hub prefix.

1. Register the docker image as a Data Flow task application:

app register --type task  --name python-task-with-status --uri docker://springcloud/python-task-with-status:0.1

Deployment

Follow the installation instructions to set up Data Flow on Kubernetes.

Create and launch the Python script as a Data Flow Task:

task create --name python-task --definition "python-task-with-status"
task launch --name python-task

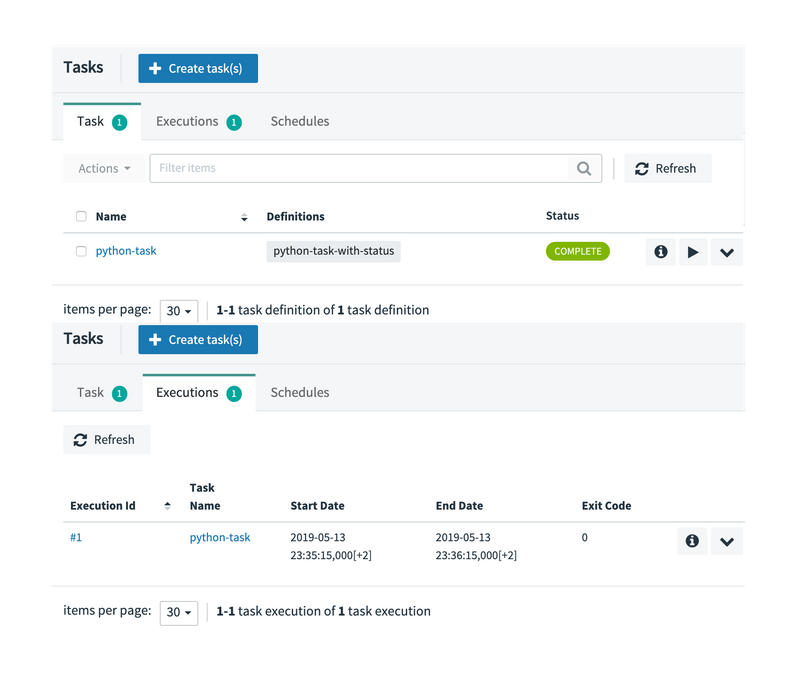

On successful task launch, you should see the following report in your Data Flow Task UI:

Launch the python-task again, with the --error.message=MyTestError launch argument (to simulate an error):

task launch --name python-task --arguments "--error.message=MyTestError"

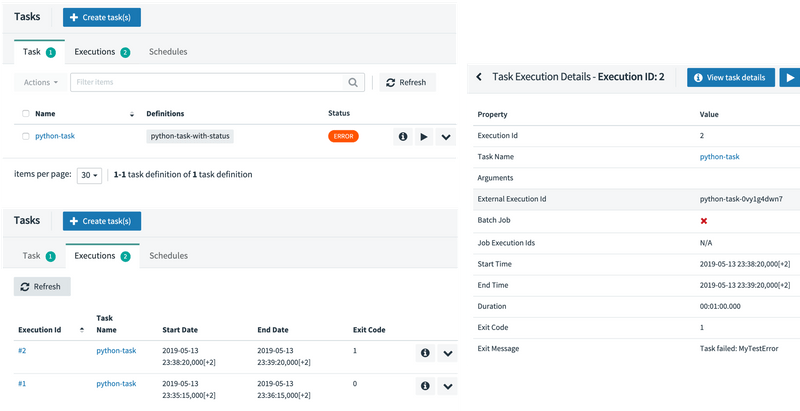

The second task execution (#2) fails, as shown in the Data Flow Task UI:

Use with Composed Tasks

With the provided task status management, you can use the Docker and Python tasks in Composed Tasks.

The following example defines a parallel task execution:

task create compose2 --definition "<pp1: python-task-with-status || pp2: python-task-with-status>"
task launch --name compose2

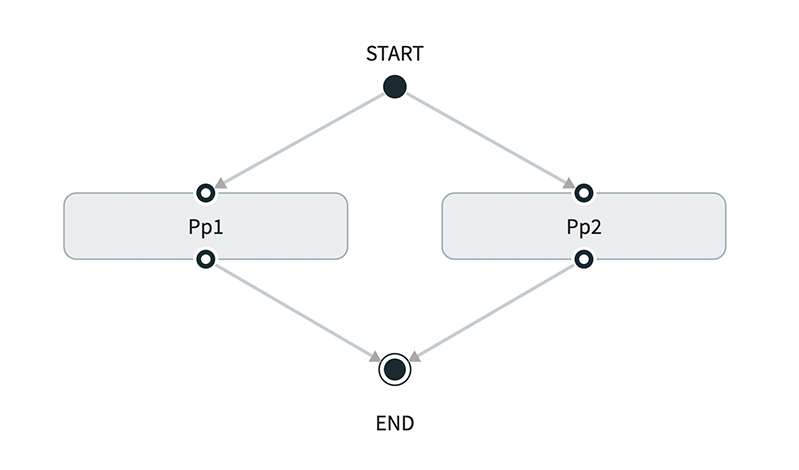

The preceding example would launch the python-task twice in parallel, as follows:

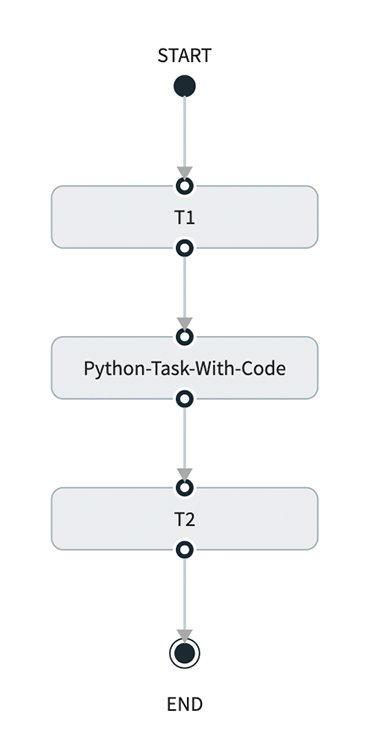

Conversely, the following composed task launches the defined tasks in sequence:

task create sequence1 --definition "t1: timestamp && python-task-with-status && t2: timestamp”
task launch --name sequence1
