Amazon Kinesis Sample

The Spring team currently maintains the Spring Cloud Stream Kinesis binder with the help of community contributions. You can read more about the binder implementation at spring-cloud/spring-cloud-stream-binder-aws-kinesis.

In this walk-through, though, we review a simple use case to showcase how the Kinesis binder can be used with Spring Cloud Stream.

Prerequisite

The only requirement for the demonstration is the Access Key, Secret Key, and Region credentials, which you can gather from your AWS account.

Alternatively, if you decide to run the applications directly as AWS EC2 instances, you need not explicitly provide any of these credentials. They are automatically discovered and autoconfigured while bootstrapping.

Applications

As for the sample producer and consumer applications, you can clone the repository at spring-cloud-dataflow-samples/kinesisdemo to follow along with this sample walk-through.

We start with a simple producer that generates a new random UUID every two seconds. Each of the generated UUID payloads are published to a Kinesis stream, and the sample consumer bound to the same Kinesis stream consumes the payload and logs it as a result.

The following listings show the producer and consumer's application code:

@EnableScheduling
@EnableBinding(Source.class)
@SpringBootApplication
public class KinesisProducerApplication {

	public static void main(String[] args) {
		SpringApplication.run(KinesisProducerApplication.class, args);
	}

	@Autowired
	private Source source;

	@Scheduled(fixedRate = 2000L)
	public void sendMessage() {
		UUID id = UUID.randomUUID();
		System.out.println("Before sending : " + id);
		source.output().send(MessageBuilder.withPayload(id).build());
		System.out.println("After sending : " + id);
	}
}

@EnableBinding(Sink.class)
@SpringBootApplication
public class KinesisConsumerApplication {

	public static void main(String[] args) {
		SpringApplication.run(KinesisConsumerApplication.class, args);
	}

	@StreamListener("input")
	public void input(String foo) {
		System.out.println("Hello: " + foo);
	}
}

The following listings show the producer's and the consumer's binder configurations:

spring:
  cloud:
    stream:
      bindings:
        output:
          destination: test-kinesis-stream
          content-type: text/plain

cloud:
  aws:
    credentials:
      accessKey: # <YOUR_ACCESS_KEY>
      secretKey: # <YOUR_SECRET_KEY>
    region:
      static: # <YOUR_REGION>
    stack:
      auto: false

spring:
  cloud:
    stream:
      bindings:
        input:
          destination: test-kinesis-stream
          group: test-kinesis-stream-group
          content-type: text/plain

cloud:
  aws:
    credentials:
      accessKey: # <YOUR_ACCESS_KEY>
      secretKey: # <YOUR_SECRET_KEY>
    region:
      static: # <YOUR_REGION>
    stack:
      auto: false

Deployment

Once you are ready to test it with AWS Kinesis, you can start the producer and consumer applications after a Maven build.

Start the producer from the cloned directory:

java -jar kinesisproducer/target/kinesisproducer-0.0.1-SNAPSHOT.jar

Start the consumer from the cloned directory:

java -jar kinesisconsumer/target/kinesisconsumer-0.0.1-SNAPSHOT.jar

Results

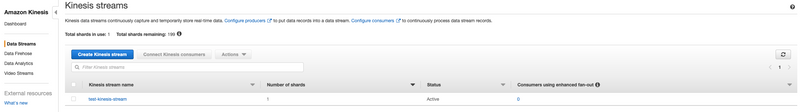

You can see the test-kinesis-stream Kinesis stream is automatically created by the producer application when it bootstraps.

Once both the applications are up and running, you should see the following in the consoles.

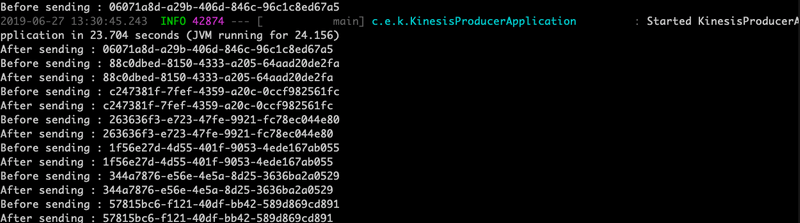

Producer:

Consumer:

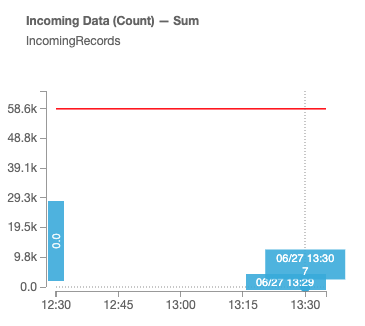

Since we stopped the application after seven records, you can see that seven records were processed in Kinesis from the monitoring page in AWS console.

Though this is only a simple demonstration, the Kinesis binder provides comprehensive coverage in terms of binder configurations on both the producer and consumer side (including support for DynamoDB Streams!). See the binder documentation for more details.
