Getting Started with Task Processing

In this guide, we create a simple task definition and launch the task.

The starting point is to use the Spring Cloud Task App Starters, which provide a set of task applications. Specifically, we use the provided timestamp application, which is basically a hello-world-style application that logs the current timestamp. For this guide, we assume that the respective timestamp task application has already been imported and registered with Spring Cloud Data Flow, as described in the Installation guide.

Creating the Task

To create a task:

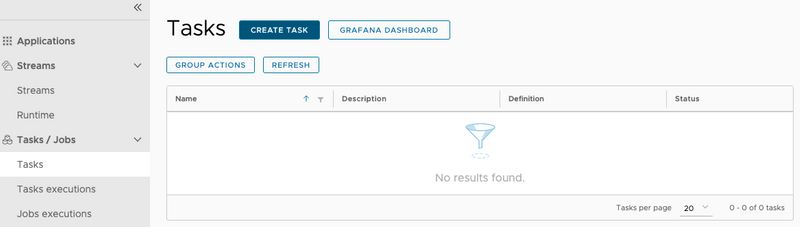

1. In the menu, click Tasks.

2. Click the CREATE TASK button.

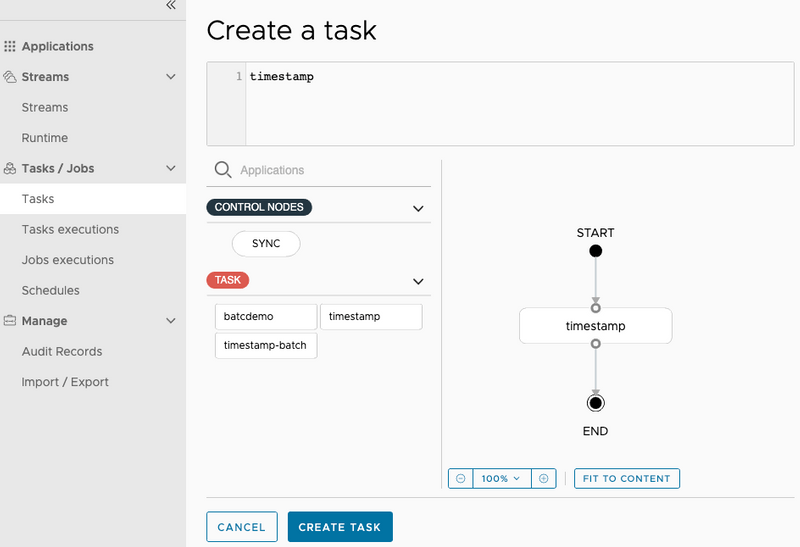

3. In the text area, type timestamp. This creates a simple task definition that uses the Timestamp task application. The following image shows the Timestamp application:



   Alternatively, you could have also dragged the Timestamp application from the apps palette on the left to the Flo canvas and connected START and END with the task application.

4. Click Create Task.

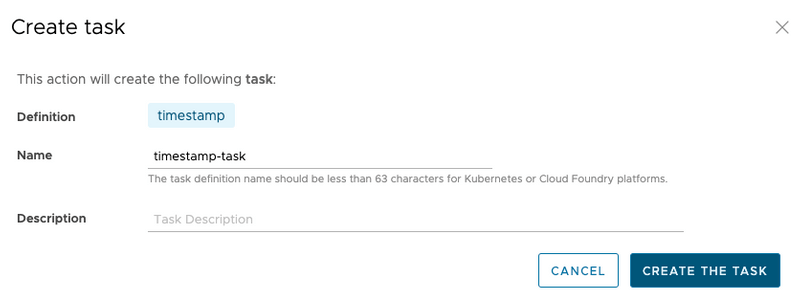

5. Enter timestamp-task as the name, as follows:



6. Click the CREATE THE TASK button.

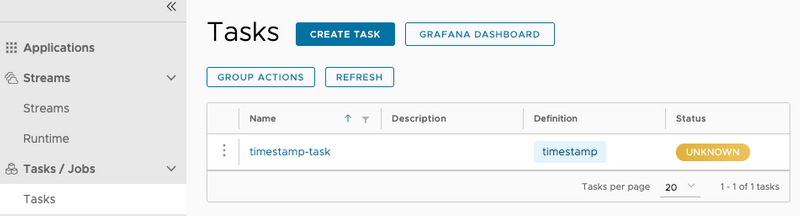

   The Task Definitions page appears and lists the created definition (timestamp-task), as follows:



Running the Task

Now that you have created a task definition, you can run it. To do so:

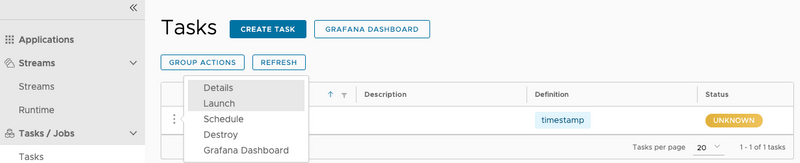

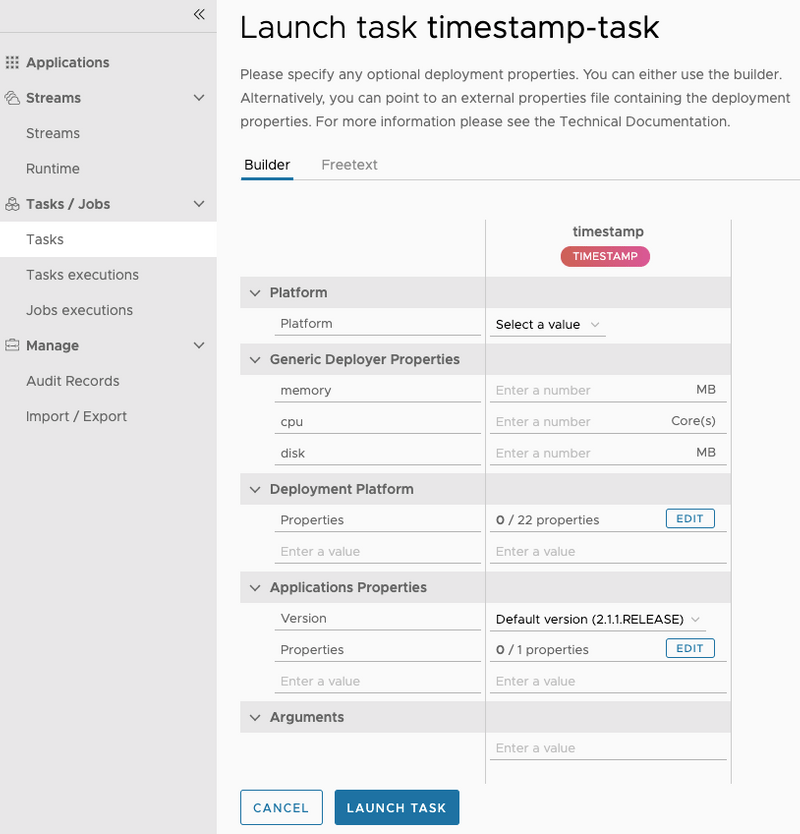

1. Click the drop down control on the timestamp-task definition row and click the Launch option, as follows:



   The UI lets you provide additional:

   • Properties: Additional properties meant for a TaskLauncher.
   • Arguments: Any properties that need to be passed as command-line arguments.



2. As we do not need to provide additional argument or parameters, click the LAUNCH THE TASK button. The UI returns to the task definitions page, as follows:

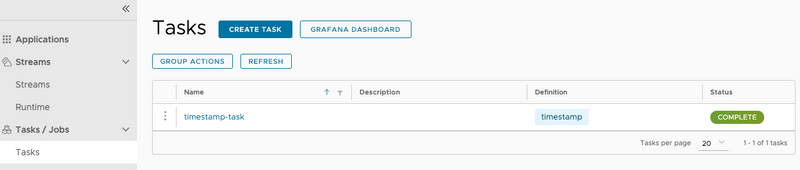

After a few moments, the task definition should show a status of "COMPLETE". You may need to press the REFRESH button to see the updated status.

Verifying the Output

To verify that the output is what you expect:

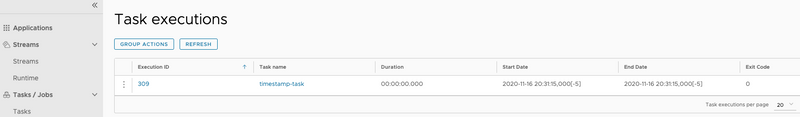

1. Click on the Task executions tab, as follows:



   You can see your task application with an exit code of 0, indicating a successful execution.

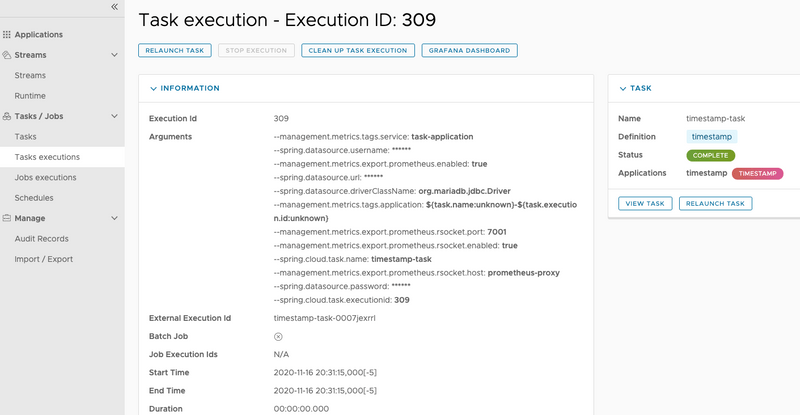

2. Click on the Execution ID on the row to see even more details, as follows:

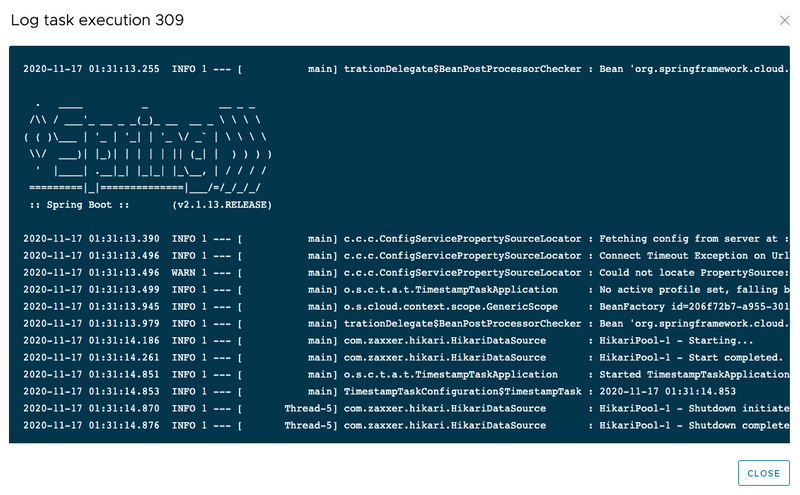

If you would also like to see the timestamp log, click the VIEW LOG button on the bottom of the page:
