Batch Processing with Spring Batch

In this guide, we develop a Spring Batch application and deploy it to Cloud Foundry, Kubernetes, and your local machine. In another guide, we deploy the Spring Batch application by using Data Flow.

This guide describes how to build this application from scratch. If you prefer, you can download a zip file that contains the sources for the billsetup application, unzip it, and proceed to the deployment step.

You can download the project from your browser or run the following command to download it from the command-line:

wget https://github.com/spring-cloud/spring-cloud-dataflow-samples/blob/master/dataflow-website/batch-developer-guides/batch/batchsamples/dist/batchsamples.zip?raw=true -O batchsamples.zip

Development

We start from Spring Initializr and create a Spring Batch application.

Suppose a cell phone data provider needs to create billing statements for customers. The usage data is stored in JSON files that are stored on the file system. The billing solution must pull data from these files, generate the billing data from this usage data, and store it in a BILL_STATEMENTS table.

We could implement this entire solution in a single Spring Boot Application that uses Spring Batch. However, for this example, we break up the solution into two phases:

1. billsetuptask: The billsetuptask application is a Spring Boot application that uses Spring Cloud Task to create the BILL_STATEMENTS table.
2. billrun: The billrun application is a Spring Boot application that uses Spring Cloud Task and Spring Batch to read usage data and price for each row from a JSON file and put the resulting data into the BILL_STATEMENTS table.

For this section, we create a Spring Cloud Task and Spring Batch billrun application that reads usage information from a JSON file that contains customer usage data and price for each entry and places the result into the BILL_STATEMENTS table.

The following image shows the BILL_STATEMENTS table:

Introducing Spring Batch

Spring Batch is a lightweight, comprehensive batch framework designed to enable the development of robust batch applications. Spring Batch provides reusable functions that are essential in processing large volumes of records by offering features such as:

• Logging/tracing
• Chunk based processing
• Declarative I/O
• Start/Stop/Restart
• Retry/Skip
• Resource management

It also provides more advanced technical services and features that enable extremely high-volume and high-performance batch jobs through optimization and partitioning techniques.

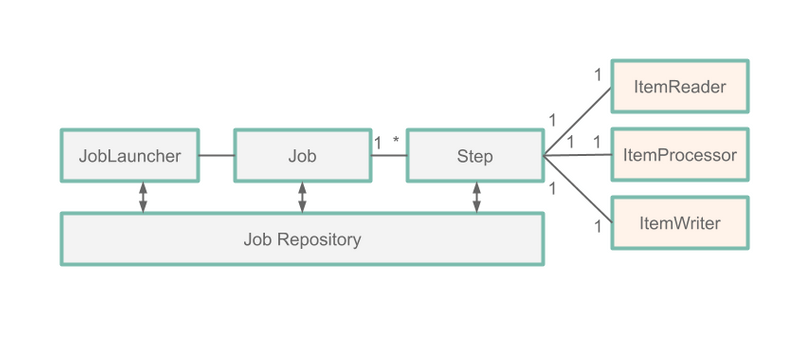

For this guide, we focus on five Spring Batch components, which the following image shows:

• Job: A Job is an entity that encapsulates an entire batch process. A job is comprised of one or more steps.
• Step: A Step is a domain object that encapsulates an independent, sequential phase of a batch job. Each step is comprised of an ItemReader, an ItemProcessor, and an ItemWriter.
• ItemReader: ItemReader is an abstraction that represents the retrieval of input for a Step, one item at a time.
• ItemProcessor: ItemProcessor is an abstraction that represents the business processing of an item.
• ItemWriter: ItemWriter is an abstraction that represents the output of a Step.

In the preceding diagram, we see that each phase of the JobExecution is stored in a JobRepository (in this case, our MySQL database). This means that each action performed by Spring Batch is recorded in a database for both logging purposes and for restarting a job.

Our Batch Job

So, for our application, we have a BillRun Job that has one Step, which consists of:

• JsonItemReader: An ItemReader that reads a JSON file containing the usage data.
• BillProcessor: An ItemProcessor that generates a price based on each row of data sent from the JsonItemReader.
• JdbcBatchItemWriter: An ItemWriter that writes the priced Bill record to the BILLING_STATEMENT table.

Initializr

We use Spring Initializr to create our application. To do so:

1. Visit the Spring Initializr site.
2. Select the latest release of Spring Boot.
3. Create a new Maven project with a Group name of io.spring and an Artifact name of billrun.
4. In the Dependencies text box, type task to select the Cloud Task dependency.
5. In the Dependencies text box, type jdbc and then select the JDBC dependency.
6. In the Dependencies text box, type h2 and then select the H2 dependency. We use H2 for unit testing.
7. In the Dependencies text box, type mysql and then select the MySQL dependency (or your favorite database). We use MySQL for the runtime database.
8. In the Dependencies text box, type batch and then select Batch.
9. Click the Generate Project button.
10. Unzip the billrun.zip file and import the project into your favorite IDE.

Alternatively, you can initialize your project by downloading a pre-built file. To do so:

1. Click this Spring Initializr link to download the preconfigured billrun.zip file.
2. Unzip the billrun.zip file and import the project into your favorite IDE.

Setting up MySQL

If you do not have an instance of MySQL available to you, you can follow these instructions to run a MySQL Docker image for this example:

1. Pull a MySQL Docker image by running the following command:

   Copy

   docker pull mysql:5.7.25

2. Start MySQL by running the following command:

   Copy

   docker run -p 3306:3306 --name mysql -e MYSQL_ROOT_PASSWORD=password \
   -e MYSQL_DATABASE=task -d mysql:5.7.25

Building The Application

1. Download https://raw.githubusercontent.com/spring-cloud/spring-cloud-dataflow-samples/master/dataflow-website/batch-developer-guides/batch/batchsamples/billrun/src/main/resources/usageinfo.json title=usageinfo.json and copy the resulting file to the /src/main/resources directory.
2. Download https://raw.githubusercontent.com/spring-cloud/spring-cloud-dataflow-samples/master/dataflow-website/batch-developer-guides/batch/batchsamples/billrun/src/main/resources/schema.sql title=schema.sql and copy the resulting file to the /src/main/resources directory.
3. In your favorite IDE, create the io.spring.billrun.model package.
4. Create a Usage class in the io.spring.billrun.model that looks like the contents of Usage.java.
5. Create a Bill class in the io.spring.billrun.model that looks like the contents of Bill.java.
6. In your favorite IDE, create the io.spring.billrun.configuration package.

7. Create an ItemProcessor for pricing each Usage record. To do so, create a BillProcessor class in the io.spring.billrun.configuration that looks like the following listing:

   Copy

   public class BillProcessor implements ItemProcessor<Usage, Bill> {

     @Override
     public Bill process(Usage usage) {
        Double billAmount = usage.getDataUsage() * .001 + usage.getMinutes() * .01;
        return new Bill(usage.getId(), usage.getFirstName(), usage.getLastName(),
              usage.getDataUsage(), usage.getMinutes(), billAmount);
     }
   }

   Notice that we implement the ItemProcessor interface that has the process method that we need to override. Our parameter is a Usage object, and the return value is of type Bill.

8. Now we can create a Java configuration that specifies the beans required for the BillRun Job. In this case, we need to create a BillingConfiguration class in the io.spring.billrun.configuration package that looks like the following listing:

   Copy

   @Configuration
   @EnableTask
   @EnableBatchProcessing
   public class BillingConfiguration {
     @Autowired
     public JobBuilderFactory jobBuilderFactory;

     @Autowired
     public StepBuilderFactory stepBuilderFactory;

     @Value("${usage.file.name:classpath:usageinfo.json}")
     private Resource usageResource;

     @Bean
     public Job job1(ItemReader<Usage> reader,
       ItemProcessor<Usage,Bill> itemProcessor, ItemWriter<Bill> writer) {
         Step step = stepBuilderFactory.get("BillProcessing")
                 .<Usage, Bill>chunk(1)
                 .reader(reader)
                 .processor(itemProcessor)
                 .writer(writer)
                 .build();

         return jobBuilderFactory.get("BillJob")
                 .incrementer(new RunIdIncrementer())
                 .start(step)
                 .build();
     }

     @Bean
     public JsonItemReader<Usage> jsonItemReader() {

         ObjectMapper objectMapper = new ObjectMapper();
         JacksonJsonObjectReader<Usage> jsonObjectReader =
                 new JacksonJsonObjectReader<>(Usage.class);
         jsonObjectReader.setMapper(objectMapper);

         return new JsonItemReaderBuilder<Usage>()
                 .jsonObjectReader(jsonObjectReader)
                 .resource(usageResource)
                 .name("UsageJsonItemReader")
                 .build();
     }

     @Bean
     public ItemWriter<Bill> jdbcBillWriter(DataSource dataSource) {
         JdbcBatchItemWriter<Bill> writer = new JdbcBatchItemWriterBuilder<Bill>()
                         .beanMapped()
                 .dataSource(dataSource)
                 .sql("INSERT INTO BILL_STATEMENTS (id, first_name, " +
                    "last_name, minutes, data_usage,bill_amount) VALUES " +
                    "(:id, :firstName, :lastName, :minutes, :dataUsage, " +
                    ":billAmount)")
                 .build();
         return writer;
     }

     @Bean
     ItemProcessor<Usage, Bill> billProcessor() {
         return new BillProcessor();
     }
   }

   The @EnableBatchProcessing annotation enables Spring Batch features and provides a base configuration for setting up batch jobs. The @EnableTask annotation sets up a TaskRepository, which stores information about the task execution (such as the start and end times of the task and the exit code). In the preceding configuration, we see that our ItemReader bean is an instance of JsonItemReader. The JsonItemReader instance reads the contents of a resource and unmarshalls the JSON data into Usage objects. JsonItemReader is one of the ItemReader implementations provided by Spring Batch. We also see that our ItemWriter bean is an instance of JdbcBatchItemWriter. The JdbcBatchItemWriter instance writes the results to our database. JdbcBatchItemWriter is one of the ItemWriter implementations provided by Spring Batch. The ItemProcessor is our very own BillProcessor. Notice that all the beans that use Spring Batch-provided classes (Job, Step, ItemReader, ItemWriter) are being built with builders provided by Spring Batch, which means less coding.

Testing

Now that we have written our code, it is time to write our test. In this case, we want to make sure that the bill information has been properly inserted into the BILLING_STATEMENTS table. To create your test, update BillrunApplicationTests.java such that it looks like the following listing:

package io.spring.billrun;

import io.spring.billrun.model.Bill;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.jdbc.core.JdbcTemplate;

import javax.sql.DataSource;
import java.util.List;

import static org.assertj.core.api.Assertions.assertThat;

@SpringBootTest
public class BillRunApplicationTests {

	@Autowired
	private DataSource dataSource;

	private JdbcTemplate jdbcTemplate;

	@BeforeEach
	public void setup() {
		this.jdbcTemplate = new JdbcTemplate(this.dataSource);
	}

	@Test
	public void testJobResults() {
		List<Bill> billStatements = this.jdbcTemplate.query("select id, " +
						"first_name, last_name, minutes, data_usage, bill_amount " +
						"FROM bill_statements ORDER BY id",
				(rs, rowNum) -> new Bill(rs.getLong("id"),
						rs.getString("FIRST_NAME"), rs.getString("LAST_NAME"),
						rs.getLong("DATA_USAGE"), rs.getLong("MINUTES"),
						rs.getDouble("bill_amount")));

		assertThat(billStatements.size()).isEqualTo(5);
		Bill billStatement = billStatements.get(0);
		assertThat(billStatement.getBillAmount()).isEqualTo(6.0);
		assertThat(billStatement.getFirstName()).isEqualTo("jane");
		assertThat(billStatement.getLastName()).isEqualTo("doe");
		assertThat(billStatement.getId()).isEqualTo(1);
		assertThat(billStatement.getMinutes()).isEqualTo(500);
		assertThat(billStatement.getDataUsage()).isEqualTo(1000);

	}
}

For this test, we use JdbcTemplate to execute a query and retrieve the results of the billrun. Once the query has run, we verify that the data in the first row of the table is what we expect.

Deployment

In this section, we deploy to a local machine, Cloud Foundry, and Kubernetes.

Local

Now we can build the project.

1. From a command line, change directory to the location of your project and build the project by running the following Maven command: ./mvnw clean package.

2. Run the application with the configurations required to process the usage information in the database.

   To configure the billrun application, use the following arguments:

   • spring.datasource.url: Set the URL to your database instance. In the following sample, we connect to a MySQL task database on our local machine at port 3306.
   • spring.datasource.username: The user name to be used for the MySQL database. In the following sample, it is root.
   • spring.datasource.password: The password to be used for the MySQL database. In the following sample, it is password.
   • spring.datasource.driverClassName: The driver to use to connect to the MySQL database. In the following sample, it is com.mysql.jdbc.Driver.
   • spring.datasource.initialization-mode: Initializes the database with the BILL_STATEMENTS and BILL_USAGE tables required for this application. In the following sample, we state that we always want to do this. Doing so does not overwrite the tables if they already exist.
   • spring.batch.initialize-schema: Initializes the database with the tables required for Spring Batch. In the following sample, we state that we always want to do this. Doing so does not overwrite the tables if they already exist.
   Copy

   java -jar target/billrun-0.0.1-SNAPSHOT.jar \
   --spring.datasource.url=jdbc:mysql://localhost:3306/task?useSSL=false \
   --spring.datasource.username=root \
   --spring.datasource.password=password \
   --spring.datasource.driverClassName=com.mysql.jdbc.Driver \
   --spring.datasource.initialization-mode=always \
   --spring.batch.initialize-schema=always

3. Log in to the mysql container to query the BILL_STATEMENTS table. To do so, run the following commands:

$ docker exec -it mysql bash -l
# mysql -u root -ppassword
mysql> select * from task.BILL_STATEMENTS;

The output should look something like the following:

Cleanup

To stop and remove the MySQL container running in the Docker instance, run the following commands:

docker stop mysql
docker rm mysql

Cloud Foundry

This guide walks through how to deploy and run simple Spring Batch standalone applications on Cloud Foundry.

Requirements

On your local machine, you need to have installed:

• Java
• Git
• The Cloud Foundry command line interface (see the documentation).

Building the Application

Now you can build the project. From a command line, change directory to the location of your project and build the project by using the following Maven command: ./mvnw clean package.

Setting up Cloud Foundry

First, you need a Cloud Foundry account. You can create a free account by using Pivotal Web Services (PWS). We use PWS for this example. If you use a different provider, your experience may differ slightly from this document.

To get started, log into Cloud Foundry by using the Cloud Foundry command line interface:

cf login

Before you can push the application, you must set up the MySQL Service on Cloud Foundry. You can check what services are available by running the following command:

cf marketplace

On Pivotal Web Services (PWS), you should be able to use the following command to install the MySQL service:

cf create-service cleardb spark task-example-mysql

Make sure you name your MySQL service is task-example-mysql. We use that value throughout this document.

Task Concepts in Cloud Foundry

To provide configuration parameters for Cloud Foundry, we create dedicated manifest YAML files for each application. For additional information on setting up a manifest, see the Cloud Foundry documentation

Running tasks on Cloud Foundry is a two-stage process. Before you can actually run any tasks, you need to first push an app that is staged without any running instances. We provide the following common properties to the manifest YAML file to each application:

memory: 32M
health-check-type: process
no-route: true
instances: 0

The key is to set the instances property to 0. Doing so ensures that the app is staged without being run. We also do not need a route to be created and can set no-route to true.

Running billrun on Cloud Foundry

Now we can deploy and run the second task application. To deploy, create a file called manifest-billrun.yml with the following content:

applications:
  - name: billrun
    memory: 32M
    health-check-type: process
    no-route: true
    instances: 0
    disk_quota: 1G
    timeout: 180
    buildpacks:
      - java_buildpack
    path: target/billrun-0.0.1-SNAPSHOT.jar
    services:
      - task-example-mysql

Now run cf push -f ./manifest-billrun.yml. Doing so stages the application. We are now ready to run the task by running the following command:

cf run-task billrun ".java-buildpack/open_jdk_jre/bin/java org.springframework.boot.loader.JarLauncher arg1" --name billrun-task

Doing so should produce output similar to the following:

Task has been submitted successfully for execution.
task name:   billrun-task
task id:     1

If we verify the task on the Cloud Foundry dashboard, we should see that the task successfully ran. But how do we verify that the task application successfully populated the database table? We do that next.

Validating the Database Results

You have multiple options for how to access a database in Cloud Foundry, depending on your individual Cloud Foundry environment. We deal with the following two options:

• Using local tools (through SSH or an external database provider)

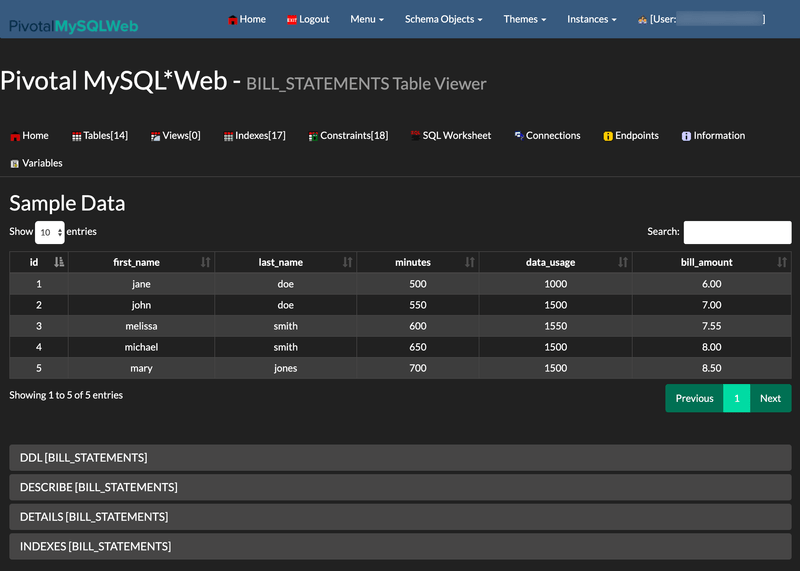

• Using a database GUI deployed to Cloud Foundry

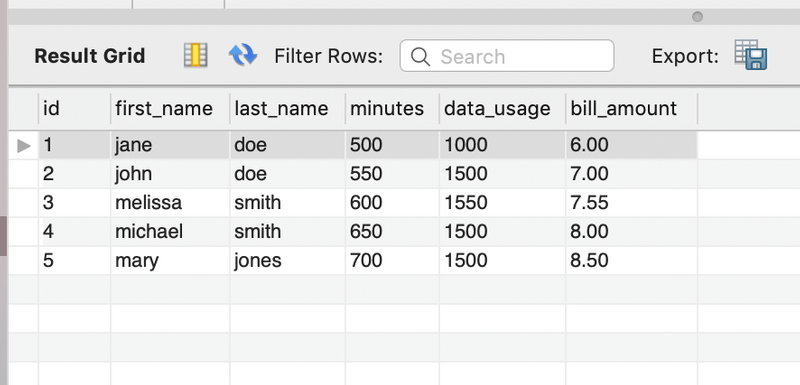

Using Local Tools (MySQLWorkbench)

First, we need to create a key for a service instance by using the cf create-service-key command, as follows:

cf create-service-key task-example-mysql EXTERNAL-ACCESS-KEY
cf service-key task-example-mysql EXTERNAL-ACCESS-KEY

Doing so should give you back the credentials necessary to access the database, such as those in the following example:

Getting key EXTERNAL-ACCESS-KEY for service instance task-example-mysql as [email protected]...

{
 "hostname": "...",
 "jdbcUrl": "jdbc:mysql://...",
 "name": "...",
 "password": "...",
 "port": "3306",
 "uri": "mysql://...",
 "username": "..."
}

This should result in a response that details the access information for the respective database. The result differs, depending on whether the database service runs internally or the service is provided by a third-party. In the case of PWS and using ClearDB, we can directly connect to the database, as it is a third-party provider.

If you deal with an internal service, you may have to create an SSH tunnel by using the cf ssh command, as follows:

cf ssh -L 3306:<host_name>:<port> task-example-mysql

By using the free MySQLWorkbench, you should see the following populated data:

Using a Database GUI Deployed to Cloud Foundry

Another interesting option for keeping an eye on your MySQL instance is to use PivotalMySQLWeb. In a nutshell, you can push PivotalMySQLWeb to your Cloud Foundry space and bind it to your MySQL instance to introspect your MySQL service without having to use local tooling.

Check out the following project:

git clone https://github.com/pivotal-cf/PivotalMySQLWeb.git
cd PivotalMySQLWeb

Then you can build the project, by running the following command:

./mvnw -DskipTests=true package

Next, you need to update the manifest.yml file, as follows:

applications:
  - name: pivotal-mysqlweb
    memory: 1024M
    instances: 1
    random-route: true
    path: ./target/PivotalMySQLWeb-1.0.0-SNAPSHOT.jar
    services:
      - task-example-mysql
    env:
      JAVA_OPTS: -Djava.security.egd=file:///dev/urandom

In this instance, we set the random-route property to true, to generate a random URL for the application. You can watch the console for the value of the URL. Then you push the application to Cloud Foundry by running the following command:

cf push

Now you can log in to the application and take a look at the table populated by the billrun task application. The following image shows its content after we have worked through the content of this example:

Tearing down All Task Applications and Services

With the conclusion of this example, you may also want to remove all instances on Cloud Foundry. The following commands accomplish that:

cf delete billsetuptask -f
cf delete billrun -f
cf delete pivotal-mysqlweb -f -r
cf delete-service-key task-example-mysql EXTERNAL-ACCESS-KEY -f
cf delete-service task-example-mysql -f

The important thing is that we need to delete the EXTERNAL-ACCESS-KEY service key before we can delete the task-example-mysql service itself. Additionally, the employed command flags are as follows:

• -f Force deletion without confirmation
• -r Also delete any mapped routes

Kubernetes

This section walks you through running the billrun application on Kubernetes.

Setting up the Kubernetes Cluster

For this example, we need a running Kubernetes cluster, and we deploy to minikube.

Verifying that Minikube is Running

To verify that Minikube is running, run the following command (shown with its output):

minikube status
host: Running
kubelet: Running
apiserver: Running
kubectl: Correctly Configured: pointing to minikube-vm at 192.168.99.100

Installing the Database

We install a MySQL server by using the default configuration from Spring Cloud Data Flow. To do so, run the following command:

kubectl apply -f https://raw.githubusercontent.com/spring-cloud/spring-cloud-dataflow/v2.8.4/src/kubernetes/mysql/mysql-deployment.yaml \
-f https://raw.githubusercontent.com/spring-cloud/spring-cloud-dataflow/v2.8.4/src/kubernetes/mysql/mysql-pvc.yaml \
-f https://raw.githubusercontent.com/spring-cloud/spring-cloud-dataflow/v2.8.4/src/kubernetes/mysql/mysql-secrets.yaml \
-f https://raw.githubusercontent.com/spring-cloud/spring-cloud-dataflow/v2.8.4/src/kubernetes/mysql/mysql-svc.yaml

Building a Docker Image for the Sample Task Application

We need to build a Docker image for the billrun app.

To do so, we use the jib maven plugin. If you downloaded the source distribution, the jib plugin is already configured. If you built the apps from scratch, add the following under plugins in pom.xml:

<plugin>
    <groupId>com.google.cloud.tools</groupId>
    <artifactId>jib-maven-plugin</artifactId>
    <version>0.10.1</version>
    <configuration>
        <from>
            <image>springcloud/openjdk</image>
        </from>
        <to>
            <image>${docker.org}/${project.artifactId}:${docker.version}</image>
        </to>
        <container>
            <useCurrentTimestamp>true</useCurrentTimestamp>
        </container>
    </configuration>
</plugin>

Then add the referenced properties under properties For this example, we use the following properties:

<docker.org>springcloudtask</docker.org>
<docker.version>${project.version}</docker.version>

Now you can run the following commands to add the image to the minikube Docker registry:

eval $(minikube docker-env)
./mvnw clean package jib:dockerBuild

Run the following command to verify its presence (by finding springcloudtask/billrun in the list of images):

docker images

Deploying the Application

The simplest way to deploy a batch application is as a standalone Pod. Deploying batch apps as a Job or CronJob is considered best practice for production environments but is beyond the scope of this guide.

Save the following content to batch-app.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: billrun
spec:
  restartPolicy: Never
  containers:
    - name: task
      image: springcloudtask/billrun:0.0.1-SNAPSHOT
      env:
        - name: SPRING_DATASOURCE_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mysql
              key: mysql-root-password
        - name: SPRING_DATASOURCE_URL
          value: jdbc:mysql://mysql:3306/task
        - name: SPRING_DATASOURCE_USERNAME
          value: root
        - name: SPRING_DATASOURCE_DRIVER_CLASS_NAME
          value: com.mysql.jdbc.Driver
  initContainers:
    - name: init-mysql-database
      image: mysql:5.6
      env:
        - name: MYSQL_PWD
          valueFrom:
            secretKeyRef:
              name: mysql
              key: mysql-root-password
      command:
        [
          'sh',
          '-c',
          'mysql -h mysql -u root -e "CREATE DATABASE IF NOT EXISTS task;"',
        ]

To start the application, run the following command:

kubectl apply -f batch-app.yaml

When the task is complete, you should see output similar to the following:

kubectl get pods
NAME                     READY   STATUS      RESTARTS   AGE
mysql-5cbb6c49f7-ntg2l   1/1     Running     0          4h
billrun                  0/1     Completed   0          10s

Now you can delete the pod. To do so, run the following command:

kubectl delete -f batch-app.yaml

Now log in to the mysql container to query the BILL_STATEMENTS table. Get the name of the mysqlpod by using kubectl get pods, as shown earlier. Then log in and query the BILL_STATEMENTS table, as follows:

kubectl exec -it mysql-5cbb6c49f7-ntg2l -- /bin/bash
# mysql -u root -p$MYSQL_ROOT_PASSWORD
mysql> select * from task.BILL_STATEMENTS;

The output should look something like the following:

To uninstall mysql, run the following command:

kubectl delete all -l app=mysql

Database Specific Notes

Microsoft SQL Server

Using Spring Batch versions 4.x and older along with the Microsoft SQL Server database you may receive a deadlock from the database when launching multiple Spring Batch applications simultaneously. This issue was reported in this issue. One solution is to create sequences instead of tables and create a BatchConfigurer to use them.
Drop the following tables and replace them with sequences using the same names:

• BATCH_STEP_EXECUTION_SEQ
• BATCH_JOB_EXECUTION_SEQ
• BATCH_JOB_SEQ

Once the tables have been replaced with sequences, then update the batch application to override the BatchConfigurer, such that it will utilize its own incrementer. One example of this implementation is shown in the sections below:

Incrementer

Create your own incrementer:

import javax.sql.DataSource;

import org.springframework.jdbc.support.incrementer.AbstractSequenceMaxValueIncrementer;

public class SqlServerSequenceMaxValueIncrementer extends AbstractSequenceMaxValueIncrementer {

	SqlServerSequenceMaxValueIncrementer(DataSource dataSource, String incrementerName) {
		super(dataSource, incrementerName);
	}
	@Override
	protected String getSequenceQuery() {
		return "select next value for " + getIncrementerName();
	}
}

BatchConfigurer

In your configuration create your own BatchConfigurer to utilize the incrementer shown above:

@Bean
public BatchConfigurer batchConfigurer(DataSource dataSource) {
    return new DefaultBatchConfigurer(dataSource) {
        protected JobRepository createJobRepository() {
            return getJobRepository();
        }

        @Override
        public JobRepository getJobRepository() {
            JobRepositoryFactoryBean factory = new JobRepositoryFactoryBean();
            DefaultDataFieldMaxValueIncrementerFactory incrementerFactory =
                    new DefaultDataFieldMaxValueIncrementerFactory(dataSource) {
                        @Override
                        public DataFieldMaxValueIncrementer getIncrementer(String incrementerType, String incrementerName) {
                            return getIncrementerForApp(incrementerName);
                        }
                    };
            factory.setIncrementerFactory(incrementerFactory);
            factory.setDataSource(dataSource);
            factory.setTransactionManager(this.getTransactionManager());
            factory.setIsolationLevelForCreate("ISOLATION_REPEATABLE_READ");
            try {
                factory.afterPropertiesSet();
                return factory.getObject();
            }
            catch (Exception exception) {
                exception.printStackTrace();
            }

            return null;
        }

        private DataFieldMaxValueIncrementer getIncrementerForApp(String incrementerName) {

            DefaultDataFieldMaxValueIncrementerFactory incrementerFactory = new DefaultDataFieldMaxValueIncrementerFactory(dataSource);
            DataFieldMaxValueIncrementer incrementer = null;
            if (dataSource != null) {
                String databaseType;
                try {
                    databaseType = DatabaseType.fromMetaData(dataSource).name();
                }
                catch (MetaDataAccessException e) {
                    throw new IllegalStateException(e);
                }
                if (StringUtils.hasText(databaseType) && databaseType.equals("SQLSERVER")) {
                    if (!isSqlServerTableSequenceAvailable(incrementerName)) {
                        incrementer = new SqlServerSequenceMaxValueIncrementer(dataSource, incrementerName);
                    }
                }
            }
            if (incrementer == null) {
                try {
                    incrementer = incrementerFactory.getIncrementer(DatabaseType.fromMetaData(dataSource).name(), incrementerName);
                }
                catch (Exception exception) {
                    exception.printStackTrace();
                }
            }
            return incrementer;
        }

        private boolean isSqlServerTableSequenceAvailable(String incrementerName) {
            boolean result = false;
            DatabaseMetaData metaData = null;
            try {
                metaData = dataSource.getConnection().getMetaData();
                String[] types = {"TABLE"};
                ResultSet tables = metaData.getTables(null, null, "%", types);
                while (tables.next()) {
                    if (tables.getString("TABLE_NAME").equals(incrementerName)) {
                        result = true;
                        break;
                    }
                }
            }
            catch (SQLException sqe) {
                sqe.printStackTrace();
            }
            return result;
        }
    };
}

Dependencies

It is required that you use Spring Cloud Task version 2.3.3 or above. This is because Spring Cloud Task 2.3.3 will use a TASK_SEQ sequence if one is available.
