Deployment Properties

When deploying a stream, properties fall into two groups:

• Deployer Properties: These properties control how the apps are deployed to the target platform and that use a deployer prefix.
• Application Properties: These propeties control or override how the application behaves and are set during stream creation.

You need to pick a defined platform configuration where each platform type (local, cloudfoundry, or kubernetes) has a different set of possible deployment properties. Every platform has a set of generic properties for memory, cpu, and disk reservations and count to define how many instances should be created on that platform.

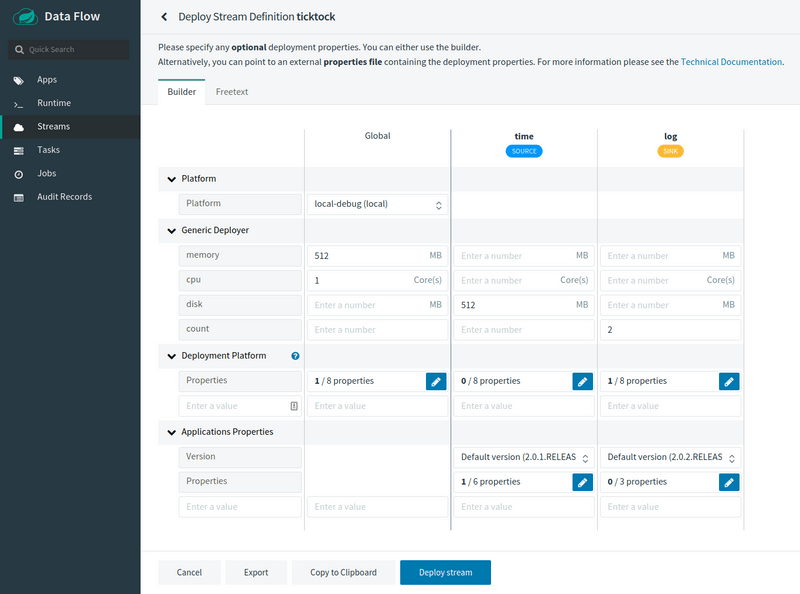

The following image shows the Deploy Stream Definition view:

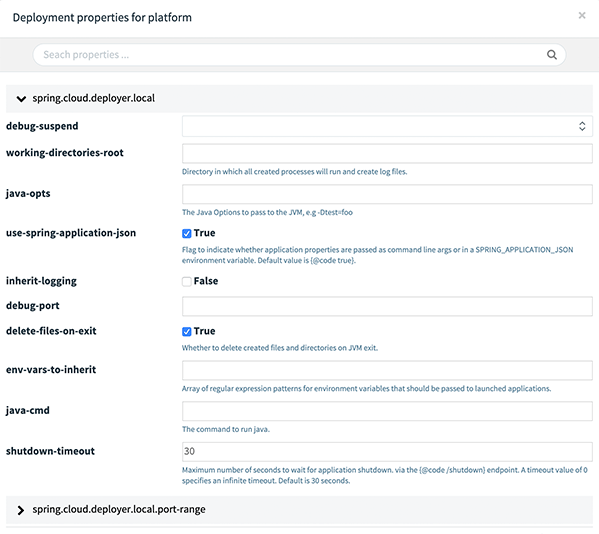

The following image shows an example of how to override the local deployer properties (note that these properties can be defined globally or per application):

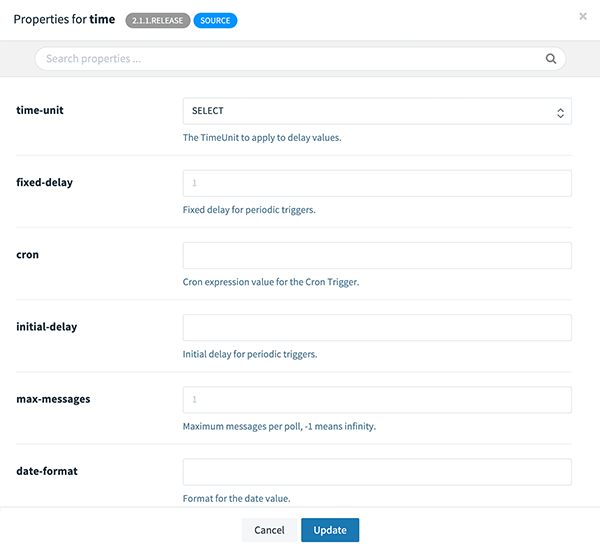

The following image shows an example of a time application's properties:

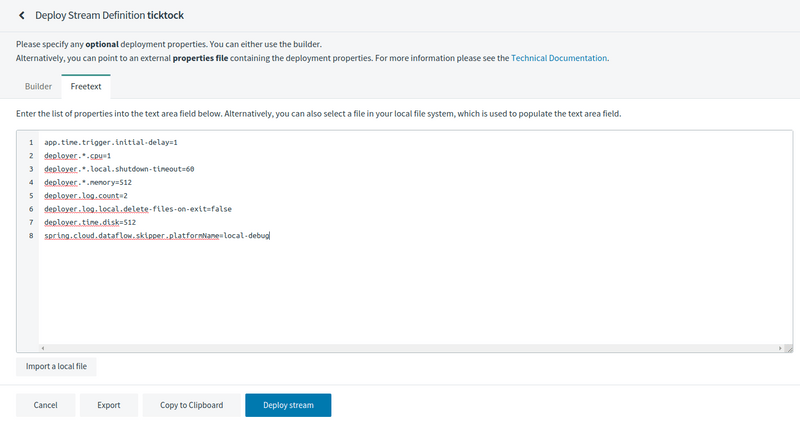

You can switch betwewn Freetext and Builder based representation to define properties. The following image shows the Freetext editor:

Once the properties are applied, they get translated by SCDF to well-defined properties, as shown in the next listing.

app.time.trigger.initial-delay=1
deployer.*.cpu=1
deployer.*.local.shutdown-timeout=60
deployer.*.memory=512
deployer.log.count=2
deployer.log.local.delete-files-on-exit=false
deployer.time.disk=512
spring.cloud.dataflow.skipper.platformName=local-debug

The preceding example would be as follows in SCDF shell:

stream deploy --name ticktock --properties "app.time.trigger.initial-delay=1,deployer.*.cpu=1,deployer.*.local.shutdown-timeout=60,deployer.*.memory=512,deployer.log.count=2,deployer.log.local.delete-files-on-exit=false,deployer.time.disk=512,spring.cloud.dataflow.skipper.platformName=local-debug"
Deployment request has been sent for stream 'ticktock'
